Product Dimensions 5"h x 29.88"w x 19.88"d

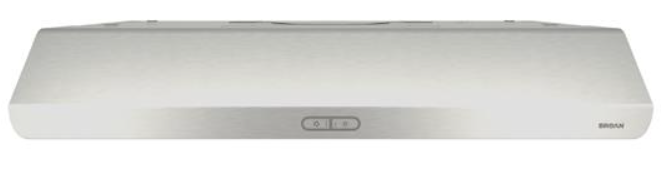

Air quality is a top concern for today’s families. The Broan series, with its superior capture efficiency, is the ideal solution. This model is sure to win over even the most demanding users with its innovative design, advanced technology, and unmatched performance.Read More
Captur™ exclusive system that provides faster smoke & odor removal
3-speed tap-touch control
2-level lighting built-in LED modules (2) that provide an even lighting over the cooktop
Two deluxe high efficiency micro filters, easy to clean
Filter clean reminder
Performant blower
HVI certified
Quiet range hood offering a sound level of 1.2 sones at low speed
Use charcoal filter HPF30 for a non-ducted installation
EZ 1 brackets make it easy for single-person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved momentary wall switch. Click here for wiring instructions.
General Specs | |
| Width (in.) | 29.88 |
| Height (in.) | 5 |
| Duct Size (in.) | 3.25 x 10 or 7 round |
| Depth (in.) | 19.88 |
| Collection | Sahale |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 1 Year / 3 Year LED Modules |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ADA Compliant | Yes |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 375 |
| Bulb Type | LED |
| Grease Filter Type | Aluminum Mesh |
| Sones Rating | 1.5 - 6.0 |
| Fan Speed Options | 3 |
| Height Above Cooktop | 18 - 24 |
| Width (cm) | 75.9 |
| Height (cm.) | 12.7 |
| Depth (cm.) | 50.5 |
| Height Above Cooktop Centimeter | 45.72cm - 60.96cm |
| Voltage | 120 |
| Amp | 0.65 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable, Filter Indicator, Charcoal Filter |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
More Information: | |
| Boost Mode | No |
| Category | Deluxe $$$ |
| Control Type | Tap-Touch Control |
| Filter Type | Deluxe High Efficiency Micro Filters |
| Lighting Intensity | 2 |
| Lighting Type | Two built-in LED modules |
| Optional Control | No |
